This post is part of a series called North America’s Train Stations: What Makes Them Sustainable — or Not? See the series introduction for more.
Score: 61 (see full scorecard)
This series’ previous post analyzed Philadelphia’s Center City stations as representing the top category called “The Sustainables;” those stations leading their transit systems toward fiscal sustainability. Other stations serve transit metropolises, but are not leaders because each has a fatal flaw. To help these flawed stations, we create a special class called “The Inexcusables.”
The Inexcusables are often trapped by lousy politics and solving each station’s flaw requires an effective governing structure. This article will expose that flaw for Chicago’s Union Station, the dominant hub in my hometown. Also typical of The Inexcusables, Union Station’s key flaws derive from mistakes made decades ago and that have not been publicly confessed; compounding the problem and raising the cost of solutions. These Inexcusable patterns betray the public’s trust and must be changed before the public invests sufficiently.
In the final analysis, the Second City’s grandest station is the center of one of the nation’s largest, disintegrating transit networks. Today, agencies are broke and don’t seem to know how to correct their mistakes.
Yet, this insolvency can be Chicago’s chance to make a new main station to lead this transit town into an era of sustainable transportation. Multiple proposals for a West Loop Transportation Center are promising, but collect dust due to lack of funding.
To understand how this condition evolved and how we can break through it, let’s start this history when Union Station was helping Chicago become the nation’s rail center.
The Best A Station Can Be: Integration Leads To Prosperity
Built by Burnham’s firm as a consortium of five competitors and led by the Pennsylvania RR (the nation’s largest railroad), Union Station tells us collaboration can serve everyone’s passengers better with easier transfers and, thereby, increase rail travel overall. In short, integrated systems lead to growth. When completed in 1922, Unions Station repeated a similar collaboration that built the central depot of the 1880s. To handle Chicago’s record-breaking growth during the previous three decades, the 1922 Station tripled capacity and innovated by terminating 24 northern and southern tracks into one convenient hub. All good… and soon-to-be-great.
Boosting economic growth, this consolidation of five companies’ terminals allowed Chicago’s Central Business District to expand; having been hemmed in by eight rail-yards and terminals. Adapting the laws innovated for New York’s Grand Central Terminal, Chicago permitted 1920s’ office buildings to be built over tracks; thus expanding the CBD and its convenient access by commuters.
The collaboration that built the 1880s depot and its replacement by the 1922 Station bookended Chicago’s ascent as the nation’s transportation center. This leverage, in turn, gave the metropolis the edge to emerge as the nation’s manufacturing center.

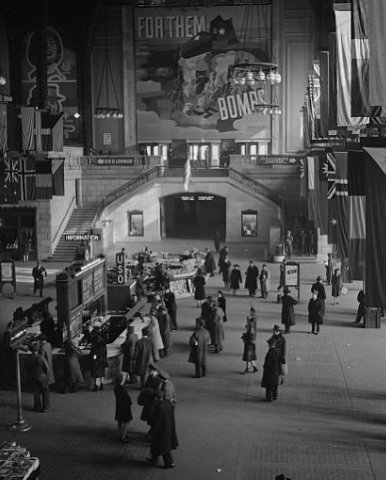

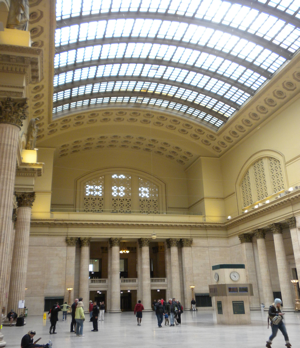

Union Stations’ early economic triumphs are matched by its long-history of aesthetic awards. The most recent was in 2012 with a “Great Public Space” award given by the American Planning Association. This coincided with other accolades derived from the publicity around the $65 million update, mostly of the station’s Great Hall and Amtrak facilities.
Bad As A Transit Town Can Get: System Dis-integration
The way Union Station works today is similar, metaphorically, to my closeup of this clock that centers the Great Hall. (Honestly, this is no Photoshop.)
Serving as terminus for half of Chicagoland’s suburban lines, Union Station declined for the last half century; making passenger convenience worse.
For example, today’s Union Station commuters and visitors connect to a subway via an unprotected two block walk south that, as a statement on priorities, enters under the Congress Expressway. Or Union Station commuters can walk three blocks east to catch the downtown Loop Elevated. This walk is even worse six months a year when Chicago is either brutally cold or hot ‘n humid. For passengers walking to rapid transit with baggage, there is no credible way to say “Thanks for visiting” or “Welcome home.”

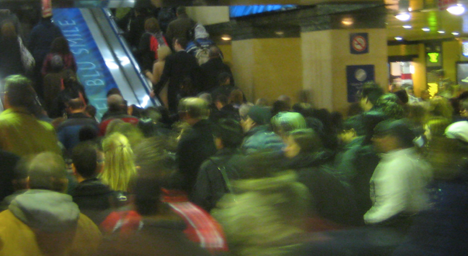

Despite the huge increase in commuters who needed to circulate during three decades of the downtown’s redevelopment boom, Chicago never replaced the “L” station and kept Union Station disconnected from rapid transit.
When considering that Union Station ridership would rank it as the 10th busiest American airport, we need to ask how many airports that large have inadequate rapid service. Since Chicago’s airports have had almost constant and continuing public investment for the past sixty years, the City’s investment priorities can only be felt as a protracted slap to two-thirds of downtown’s daily rail riders who have made Chicago’s economy work and probably contribute more than their fair share of taxes.
The 1970s design of the concourse’s substitute was so bad that an extensive $23 million renovation in 1992 (by a European star-architect) could not conceal the dirt that had been done: Chicago’s former train “cathedral” had been scrunched under an office tower. Today’s concourse is little more than a passenger pipeline dressed-up as a fast-food mall. I have been jostled through the concourse during several rush hours and I still find it confusing and claustrophobic. I’m still looking for a fellow traveler whose eyes do not seem glazed over. Seeming to reflect my feelings about leaving the concourse, the photo below is borrowed from the 2012 CDOT Plan referenced below.
Overall, this break-down of order converts an otherwise safe train commute into a hot zone endangering public safety once it encounters the street.
Seeking to explain this failure in the primary job of government, I recall the field of mathematics that says human behavior is unpredictable when systems are at capacity. This Chaos Theory says things can go wrong spontaneously. The streets outside Union Station — at almost any daylight hour — proves to me the value of this Theory.
As a final sign of system disintegration, only slow, noxious diesel buses directly serve a station with 125,000 daily weekday passengers, the nation’s third largest. Since only 11% of METRA riders get on a CTA bus, it has obvious limits. Those who choose to walk get a type of gallows satisfaction because the pedestrians often move faster than fellow commuters packed into a rush hour bus.
To sum their personal experiences, transit commuters are doing the Right Thing and deserve much better. At the least, a decent deal would reward commuters with enough convenience to encourage more good behavior.
Reflecting further government failure, Union Station’s owner (Amtrak) does not grasp the collaboration of 125 years ago that led to Chicago’s growth. The Station’s largest tenant (METRA) has so many scandals it is unlikely to survive the recommendations of the blue-ribbon committee appointed by the Governor. The same goes for the Regional Transportation “Authority.” Its four decades of failed oversight has allowed system dis-integration and agency waste of public funds. And Chicago’s Transit Authority carries baggage of recurring fiscal failures and two decades of deferred maintenance.
Recognizing the uselessness of transit’s major operators, Mayor Emanuel has put in-charge Chicago’s Department of Transportation. CDOT capped off 12 years of downtown planning with its May 2012 “Union Station Master Plan.” While not as forthright as my analysis (and certainly not written in my style), The Plan is candid for a government document; which I see as a sign of hope.

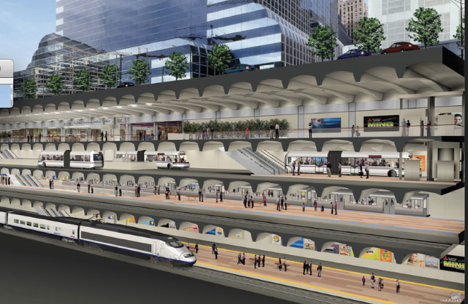

After wasting a decade of grand planning when the City had some cash, The 2012 Plan is practical… now that Chicago is flat broke. The Plan details improvements today, most of which are probably affordable. And it inspires some hope that its 5 to 10 year goals of realigning and widening Station platforms will help overcome crowding and, maybe, make more probable the benefits of through-routing. But… no funding, as yet.
With history as judge, planning promises will not overcome the reality that governments are poorly aligned and, thus, are unlikely to spend tax dollars intelligently. But this dismal Big Picture gets more hopeful when we consider CDOT’s first small step to rebuild connectivity with a Loop Bus Rapid Transit. We hope BRT, sometime in 2015, will serve Chicago’s largest downtown buildings and reconnect the largest three commuter stations with the CTA’s rapid rail.
There are reasons to side with skeptics saying that this BRT is not a suitable solution; particularly if this City continues to tout itself as a global hub while only able to implement BRT, a technology used by developing economies. But, BRT is all Chicago can afford; having lost taxpayer support by treating its transit customers for decades as second class.
How Do We Convert Dis-integration Into Sustainable Integration?
Even for someone who enjoys writing about the future, I’ve just made a tough ask here. But starting relative to today’s transportation agency dis-integration, the positives are that the Loop BRT can meet a very low standard and still be considered a success. Yet, BRT will not renew Chicagoans’ transit greatness as long as Union Station is stuck behind the times.
Chicago’s boosters cannot mask much longer their inadequate downtown transit. This will lose the city its status as a global hub. While Public-Private Partnerships are floated to fund the low-hanging fruit, use of PPPs sufficient to make a new transit center will require reducing private risk with public funds. Politicians can pretend different and commuters can hope and pray (and buy lottery tickets), but anyone serious about transit must deal with reality: that public funds are the missing ingredient in updating Union Station and its transit network for the 21st Century.
Obstacle: taxpayers have made it implicitly clear that they have lost faith in the current transportation regime fed mostly by sales taxes; having supported the regime, only to have it fail at maintaining itself in good working order… METRA disgracefully so.
I boil down this analysis to the key strategic challenge of re-integration and how Chicagoans are likely to judge future investments: did their money for the West Loop Center replace non-integrated rapid and commuter rail with integrated systems that contribute to the economic and fiscal balance that the City needs to compete globally?
Any future strategy will not work if decision-making authority still resides with agencies proven to avoid problems and whose directors are appointed by politicians who have not admitted past mistakes, nor promised to correct them.
To get on track, Chicagoans must radically restructure bankrupt agencies; and probably start anew. To raise the funds to break beyond BRT, I advocate raising public capital and investing it through an independent publicly-elected Infrastructure Board. (Watch future posts for that proposal, separate from this series on stations.) This Board will be dedicated to increasing rail travel and protect future public investment by also serving as chief advocate for reducing the radical bias and subsidy to cars.
As guardian of taxpayers’ new infrastructure capital to integrate systems and increase commuter convenience, this dual-dedicated Board could help re-organize transportation providers into a sustainable competitive collaboration and build a suitable West Loop Center. Another pipe-dream proposal? Hardly. Here is our lesson from history: collaboration twice (1883 and 1922) built stations that led Chicago’s prosperity. Both times, Chicago clearly had the ambition to be ahead of its time. Does it now?
Roland Solinski says
Good analysis. My (admittedly optimistic) view of current events is that a lot of the recent actions by the City of Chicago and CTA are intended to lay the groundwork for future megaprojects.
We don’t get a Circle Line, we get an Ashland BRT. We don’t get a Red Line Modernization, we get a series of handsome station rebuilds. We don’t get a Red Line Extension, but we get a total reconstruction of the line and a grand new 95th St terminal. We don’t get a Carroll Ave or Monroe St busway, but we get the East-West BRT. And yes, instead of the West Loop Transportation Center, we get the Union Station Master Plan.
Politicians love projects (jobs+money), but the case for huge megaprojects is seriously weakened by the comparison with the status quo. If the various agencies haven’t taken advantage of all the easy fixes to major problems, why should taxpayers pay for the grand solution? They have no credibility when it comes to planning.
This is at least superficially similar to LA, where the rail-expansionist mania of the 80s/early 90s was terminated by a methane explosion and Bus Riders Union protests. Metro then spent 15 years building credibility, consensus, and support while implementing common-sense improvements like MetroRapid. This later paid off in spectacular fashion when voters in 2008 approved Measure R, opening up $40bn in funding for transportation.
This is a great summary of Union Station. It is criminal that they demolished the head house and have everyone enter through the basement isn’t it? I hear Metra is thinking of diverting a line into the afterthought station on LaSalle st.
I read a Chicago plan about a decade ago to make a blue line extension that would wrap through canal street and stop at Union Station and Olgvie. Do you think that is worth pursuing? If Daley hasn’t wasted all that money on the airport express it might have a chance but no money now, sadly.
Robert Munson says
Thanks for your thoughtfulness.
Despite my critique, I also see some positives as well with the new Mayor.
But progress is constrained radically by today’s red ink which has only just started to flow.
Ultimately, today’s flurry of improvements also wither away in the next few years unless Chicago has the credibility to get the taxpayer involved… and that will be very difficult when this year’s property tax increase of 5% gets doubled after Rahm’s reelection. (Obviously, my speculation!)
Your analogy to LA is interesting and somewhat generates hope; but today’s chronic fiscal crises make even a decade-long credibility-building seem too late.
Partly based on what you have said, I think it makes more sense to shape a strategy of new institutions around the PPP legislation. Transit operators reflect the dysfunction and abysmal fiscal condition of our governments.
Robert Munson says
Thanks. This has been the most enjoyable piece to write in the series.
If I hadn’t written it, I probably wouldn’t have realized what tragic consequences the demolition of the concourse had. It was the mid-Century hubris that the autos ascent would continue and trains would decline. Both very wrong today. And, now we are broke.
On METRA moving a line to Lasalle station… I can’t hurt. Curiously, that new station has almost immediate access to the Blue Line and the Green Line… right across the street.
Other than lack of money, I’m not sure why the CTA abandoned that Blue Line proposal down Canal that you mention. It seems to me it is worked into the West Side Center, but such a mega-project is out of the question if it is controlled by a government that can’t pay its obligations. Another example of my point about setting up a new type of authority that invests tax dollars well.
Jon Seisa says
Have you heard of “Value Capture Funding”? Perhaps this is a viable and pragmatically strategic finance tool for Chicago to access. Apparently, this is the next innovative wave in funding behemoth integrated public transit projects using an economic development mechanism accessing increased intrinsic property values. There was a huge national conference this past Feb. on it, the 2013 Public Private Partnership Conference in Dallas. SEE: http://valuecapture.org/tag/brt/
Value capture funding has yet to be fully optimized in the U.S. though it is no stranger to America, for it was the key funding tool in the construction of the Transcontinental Railway during the 19th Century, and there are some modern uses of it in business improvement district redevelopments, and the 62-mile Cotton Belt Rail Line in Texas. It has been used to fund BRTs in BogotÃ¡, Columbia and Sao Paulo, Brazil; and more recently Shenzhen, China, is launching a billion dollar MRT via value capture. The leveraging of value capture funding reduces costs for state and local budgets, aligns future infrastructure investment to be highly feasible, and generates cross-support from private sector interests for such infrastructural investments. Opportunities to pay for infrastructure via leveraging property values may range in vastness and scope; however value capture remains consistently viable and overall for all diverse components involved is a WIN-WIN formula for success.
Jon Davis says
A good summation of Union Station’s history, wasted potential and remaining promise. One quick historical correction, however:

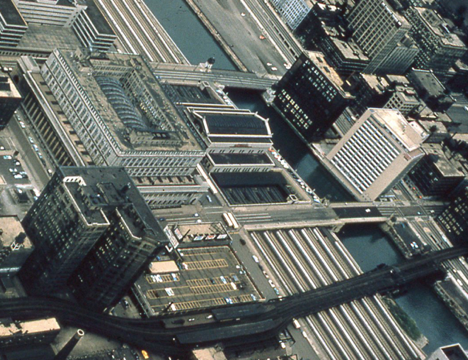

The “L” system’s old Canal station (the one in that great aerial photo) wasn’t just demolished to make way for tall buildings; a parking garage — natch — stands in its place today. The entire Garfield Park branch of the system was torn down in to make way for the Congress Expressway (now the Eisenhower, a.k.a. I-290). This also doomed the Chicago Aurora & Elgin interurban line, which connected to the Loop from the western suburbs via the “L” and served the station until 1953.
